Applications and Benefits:
Self-drilling screws have advantages over conventional screws in that they eliminate the need to drill a pilot hole before insertion. This can save time and effort in many fastening applications, while delivering the same security and versatility of a conventional screw.
Self-drilling screws should always be installed using a power-driver and are therefore particularly suited to fast production environments. They can be used in light and heavy gauge sheet metals, soft plastics, etc, and are ideal for applications in heating and air conditioning, metal, and fiberglass fabrication industries.
Self tapping screws VS. Self drilling screws
The difference between self-tapping and self-drilling fasteners is that self-tapping screws will tap a hole into a soft material, self-drilling screws can drill a hole into anything from metal to wood meaning no pilot hole is needed.

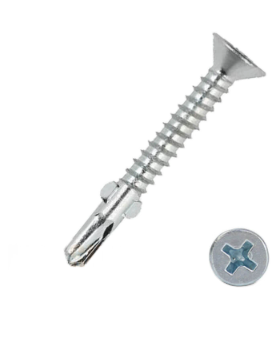

- Description:
- Application: Metal, Steel Studs
- Coating: Zinc Plated
- Drive Type: Phillips
- Head: Countersunk Head with ribs
- Material: Steel
Features:1. The wings behind the drill head, ream up a clearance hole in the timber, which is of larger diameter than the screw thread.2. The wings are designed to shear off as they strike the substructure.3. The screw drills its own core hole into the substructure and forms a thread so that the timber will be fastened to the substructure. The ribs under the head trimming the drilled hole for a clean countersink.
Tianyu Fasteners support customization.
Send us your inquiry now, our experienced team member will give you the best offer.
