Application:

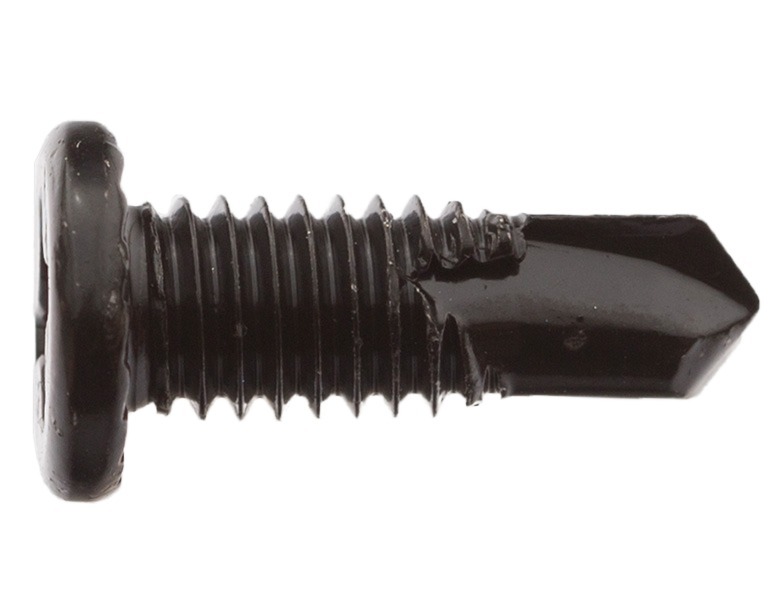

M6 Smooth Frame drilling Screw is used for the assembly of steel roof trusses, floor trusses and steel wall frames. The product does not require a pre-punched hole but can be used with pre-punched holes P 5,0 mm or smaller.
Used as companion screws in roof and floor trusses.
Features:
Underhead serrations: Higher resistance to loosening and a higher strip torque.
Tri-lobular Thread: The feature Ensures maximum pullout strength and a higher strip torque.
M6 Thread: High single shear and torsional strength.
Drilling Point: Does not require a pre-punched hole.
Installation Instructions:
1. Use the number 3 Phillips Cross Recess Driver Bit.
2. Use a mains-powered or cordless screwdriver with a 2,500 RPM speed.
3. Fit the Phillips driver bit into the screw and place it in the fastening position.
4. Apply consistently firm pressure (end load) to the screwdriver until the screw has fastened.
